MD300 AI dashcam

MD300 AI Dashcam

  • AI intelligent early warning ADAS & MDS

  • Efficient fleet management

  • High-precision location information

  • High quality audio & video 2K ultra-clear 1080p

  • Compact and flexible design

  • Easy to install

MD300 AI Dashcam: Next-Level Vehicle Monitoring for Smarter Fleet Management

Elevate your fleet’s safety, efficiency, and intelligence with the Meitrack MD300 AI Dashcam—a compact, AI-powered camera system designed to deliver unparalleled insight into driver behavior, road conditions, and vehicle performance. With built-in 2K ADAS (Advanced Driver Assistance System) and 1080P DMS (Driver Monitoring System) cameras, the MD300 provides crystal-clear footage from both road-facing and driver-facing angles, ensuring every event is captured in sharp detail. Its AI algorithms deliver real-time smart alerts such as lane departure warnings, forward collision alerts, and fatigue monitoring—crucial features that not only improve driver safety but also reduce liability and insurance costs.

The MD300 is a fully integrated fleet tracking solution supporting 4G communication, Wi-Fi, and seamless compatibility with Meitrack’s advanced MS06 platform. This integration enables efficient real-time video uploads, intelligent driving behavior analysis, and customizable driving coaching—all accessible via a centralized dashboard. Its dual-frequency GNSS positioning (with optional RTK and DR support) ensures pinpoint accuracy in location tracking, helping businesses optimize routes and monitor fleet operations effectively.

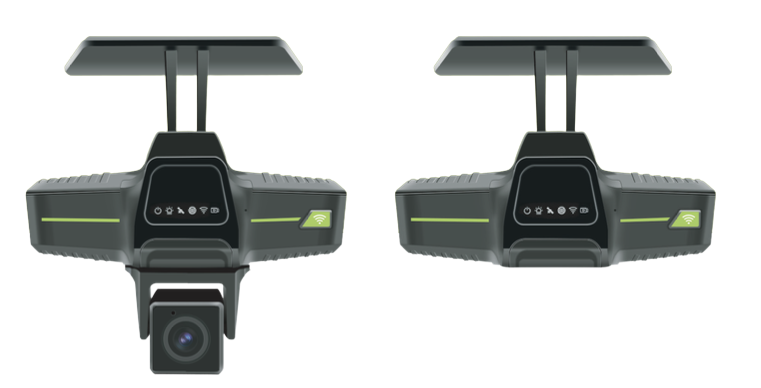

Designed with flexibility in mind, the MD300 comes in two compact formats (117×70×120mm or 117×70×80mm) and weighs just 265–310g. The system supports up to 4-channel video input, including optional AHD cameras, allowing for expanded coverage in larger vehicles. It offers up to 2TB of reliable storage via dual microSD cards and uses H.265 video compression for maximum efficiency. With support for CVBS output, dual CAN, RS232/RS485, and multiple I/O ports, the MD300 is easy to install and integrate into diverse vehicle systems.

For businesses aiming to reduce risks, lower operational costs, and achieve compliance with driver behavior standards, the MD300 AI Dashcam is the smart investment. With intelligent early warning systems, fatigue detection, and in-depth driver behavior insights, the MD300 ensures your fleet stays safe, accountable, and efficient.

  • 2K ultra clear 1080 video recording
  • 105 degree horizontal road-facing lens
  • 100 horizontal driver-facing lens
  • Support up to 4-channel video recording
  • Built-in WiFi and 4G communication module
  • Dual CPU control
  • MAX 2*1T storage

Rated voltage

DC: 11.4-40V, rated 12V 2A, external power box, available in N1 and N2 versions
Micro SD card

2*Micro SD cards, single card supports up to 1TB, Class 10 and above
System operation

Dual CPU operation, supports low power mode
Video input

Option 1: MAX 4 channels, built-in 2K ADAS + built-in 1080P DMS + external 2 channels
720P AHD cameras (optional)
Option 2: MAX 3 channels, built-in 2K ADAS + external 2 channels 720P AHD cameras (optional)
Video output

1 channel CVBS aviation plug output (level: 1.0Vp-p, impedance: 75Ω)
Video compression

H.264/H.265 configurable, default H.265
Audio input

1st channel audio input: built-in MIC input (supports intercom, two-way calling, and recording or listening for channels 1 and 2)
2nd channel audio input supported
3rd channel AHD camera audio input requires camera support (for recording or listening)
Audio output

1 channel built-in speaker output, 1 channel external display screen with built-in speaker output
Audio compression

G.726/G.711a/AAC
Video search and playback

Search and playback by channel, recording type, bitrate type, or time
Recording method

Regular recording and AI alarm recording; synchronized audio and video recording
WiFi

802.11b/g/n, frequency 2.4G, supports AP/STA mode, can connect to MM+ APP for parameter configuration via button press
GNSS

Supports antenna insertion/removal/short-circuit detection
Working power consumption

Main unit audio and video on with 2 built-in cameras: approx. 6W;with 2 external cameras, during the day approx. 12.5W (13W with display), at night approx. 14W (14.5W with display).
Supported protocols

Meitrack protocol (CCE) + RTMP (audio & video transmission protocol, also compatible with Meitrack’s private audio & video transmission protocol)
Bluetooth

Supports master-slave dual mode, can read Bluetooth accessories
SPI memory

MCU: Built-in 8MB, used for storing GPRS/SMS/GPS log data
Operating temperature

Without battery: -20°C ~ 70°C
Built-in accelerometer

3-axis accelerometer, supports motion and stationary detection (hardware supports 6-axis sensor)
I/O interfaces

N1 version interfaces: SOS*1 + ACC*1 + IN/AD/OUT*2 (total 2 multiplexed) + RS232*1 + CAN*1
+ 5V_OUT*1 + DC_IN*1 + GND*1 + 1-Wire*1
N2 version interfaces: SOS*1 + ACC*1 + IN/AD/OUT*6 (total 6 multiplexed) + OUT*1 (independent) + RS232*1 + CAN*2 + 5V_OUT*1 + DC_IN*1 + GND*2 + 12V_OUT*1 + RS485*1 + 1-Wire*1
Dimensions

117*70*120mm (dual cameras with bracket), 117*70*80mm (single camera without bracket)
Weight

310g (dual cameras without accessories), 265g (single camera without accessories)

  • ACA303 ADH 720p metal small conch camera

  • ACA501 AHD 720P C2 Small Waterproof Camera
  • ACA503 AHD 720P Small Waterproof Camera
  • ACP505 AHD 720P A-pillar DMS Camera
  • In-vehicle CVBS display
  • AST101 Bluetooth Temperature & Humidity Sensor
  • AB402 Bluetooth Beacon
  • Magnetic Card Reader (Thailand DLT)

CE DLT certification
